ComBid Clip System 150

1.5" Standing Seam Panel System — Sarasota, Florida

The ComBid Clip System 150 (CBCS150) is a professional-grade mechanically secured standing seam roofing system designed for maximum wind resistance, thermal movement control, and long-term performance in demanding Florida environments.

This system uses engineered concealed clips and a 1.5-inch tall seam profile to deliver superior structural strength, clean architectural lines, and industry-trusted performance for commercial and high-end residential roofing.

Why Choose ComBid Clip System 150?

✔ 1.5" tall seam profile
✔ Engineered concealed clip system
✔ Designed for mechanical seaming
✔ Excellent wind uplift resistance
✔ Ideal for coastal and hurricane zones
✔ Clean modern architectural appearance
✔ Long panel length capability

Product Features

1.5" Tall Standing Seam Profile
Provides enhanced rigidity, water-shedding capability, and strong architectural definition.

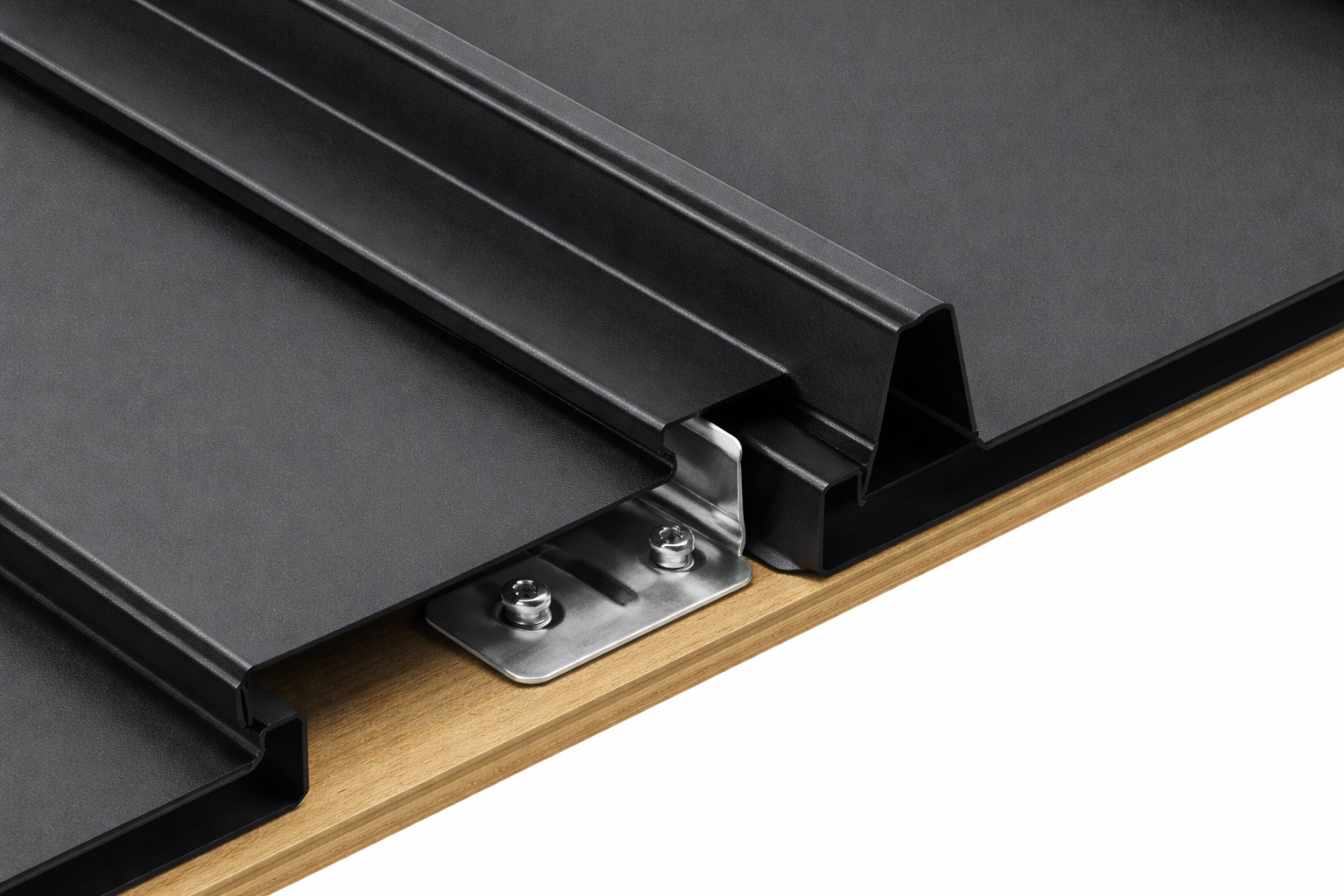

Concealed Clip System
Panels are secured using engineered clips that allow thermal movement while maintaining structural attachment.

Mechanical Seaming Capability
Designed for single-lock or double-lock mechanical seaming depending on project requirements.

Thermal Expansion Control
Clip system allows controlled expansion and contraction without oil-canning or fastener stress.

Material Options
• Galvalume steel
• G-90 galvanized steel
• Aluminum

Premium Coatings
• PVDF (70% Kynar 500 quality)
• SMP finish options

Complete Trim System
Ridge caps, rake trims, eave flashings, valleys, wall flashings, transitions, closures, and gutter components available.

Benefits for Sarasota & Florida Projects

• Superior wind uplift performance
• Ideal for long panel runs
• Excellent water tightness when double-locked
• High corrosion resistance for coastal climates
• Energy-efficient cool roof coating options
• Professional-grade appearance

Applications

• Commercial buildings
• Multi-family projects
• High-end residential homes
• Retail and office buildings
• Schools and institutional facilities
• Industrial and warehouse roofs

Technical Specifications

Panel Widths: 12" – 18" nominal
Seam Height: 1.5" (150 profile)
Material Gauges:
22–26 ga steel
.032"–.040" aluminum

Fastening: Concealed engineered clip system
Seaming: Mechanical single-lock or double-lock
Coatings: PVDF or SMP
Installation: Over approved underlayment and prepared roof deck

Installation Overview

Panels are installed over approved underlayment with concealed clips mechanically fastened to the structural deck. Panels are engaged onto the clips and then mechanically seamed using approved seaming equipment. The clip system allows thermal movement while maintaining secure attachment. Proper flashing, edge metal, and closures ensure long-term watertight performance.

Warranty & Support

Warranty coverage depends on material and coating selection. Extended warranties available for qualifying installations. Combid Metals provides technical support, trim packages, and project consultation for Sarasota-area code compliance and best installation practices.
